AX3000 Wall Plate WiFi 6 Access Point

  • Up to 2976 Mbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
  • Full in-room WiFi coverage for a seamless network.

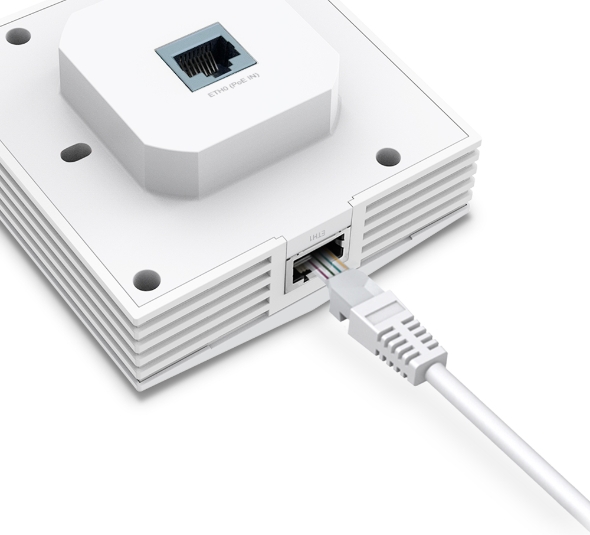

  • Connect wired devices with one downlink gigabit port.
  • Integrates with the Omada SDN platform for centralized management.
  • Features an easy-to-install design and supports PoE for easy installation.

Learn more about Omada WiFi 6>​

Learn more about Omada Cloud SDN>​

TP-Link | Omada

AX3000 Wall Plate WiFi 6 Access Point

EAP650-Wall

  •

    2402 Mbps on 5 GHz
    +574 Mbps on 2.4GHz

  •

    High-Efficiency
    WiFi 6

  •

    Two Gigabit
    Ports

  •

    Seamless
    Roaming


  •

    Centralized Cloud
    Management

  •

    PoE
    Powered

  •

    Enhanced
    Security

  •

    Easy
    Installation

Dedicated Complete, Private WiFi Network in Each Room

  •

    Hospitality

    Room-by-room connection with elegant appearance

  •

    Dormitory

    Stable wireless and wired connections

  •

    Apartment

    Private and secure network access for every family

  •

    Villa

    Whole-home WiFi coverage with seamless roaming

  •

    Meeting Room

    Faster streaming and downloading for your needs

Lightning-Fast AX3000 WiFi 6 Speeds

  • 5 GHz 2402  Mbps

  • 2.4 GHz 574 Mbps

  •

    1024 QAM

  •

    Long OFDM Symbol

  •

    160 MHz Channel

Easy Deployment, Quick Installation

  • TP-Link PoE Switch

    Ethernet Cable

    Effortless Deployment with PoE Powered

  • 86 mm wall
    junction box

    Standard EU wall
    junction box

    The Easy-to-install Design

More than Speed, Security Matters

  •

    Secure Guest Network with Up to 16 SSIDs

    Guest networks provide enhanced security. Different SSIDs also enable flexible access management.

  •

    Boost Business with SMS Login

    Captive portals (including SMS, Voucher, etc.) and 802.1x authentication ensure authorized guests can access the network.

  •

    WPA3 for Worry-Free Open Public Networks

    WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.

Auto Channel Selection and Power Adjustment

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Channel 1

Channel 11

Channel 6

Power

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and routers across multiple sites all from a single interface.

Omada Ceiling Mount AP
WiFi 6 Wall Plate APEAP650-Wall
Omada
Outdoor AP
Omada PoE Switch
Omada VPN Router
Cloud Access
On-premises Controllers
Omada Hardware
Controller
Or
Omada Software
Controller
Or
Omada Cloud-Based
Controller
(Subscription Required)
Internet
Web Browser
Omada App

HARDWARE FEATURES

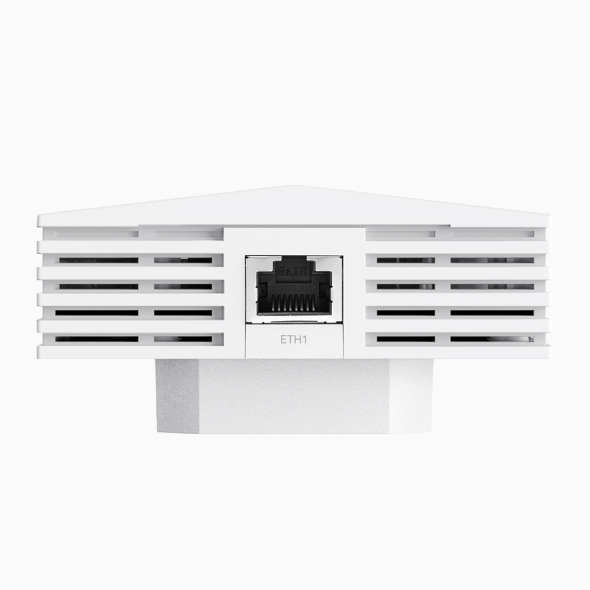

Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port
Physical Security Lock No
Button Reset, LED
Power Supply 802.3af PoE
Power Consumption EU: 10.5 W
Dimensions 86 × 86 × 42.2 mm (3.4 × 3.4 × 1.7 in)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 3× 5 dBi
Mounting Wall Plate Mounting (Kits included)
WIRELESS FEATURES
Coverage 40㎡(450ft²)***
Concurrent Clients 100+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Omada Mesh§
• Seamless Roaming§
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm (2.4GHz, EIRP)
<23 dBm (5GHz, EIRP )
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, RoHS
Package Contents • AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
• Installation Guide
• Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

Use of WiFi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, require clients to support the corresponding features.

§Omada Mesh, Seamless Roaming, and Captive Portal require Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.

***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
