EAP673

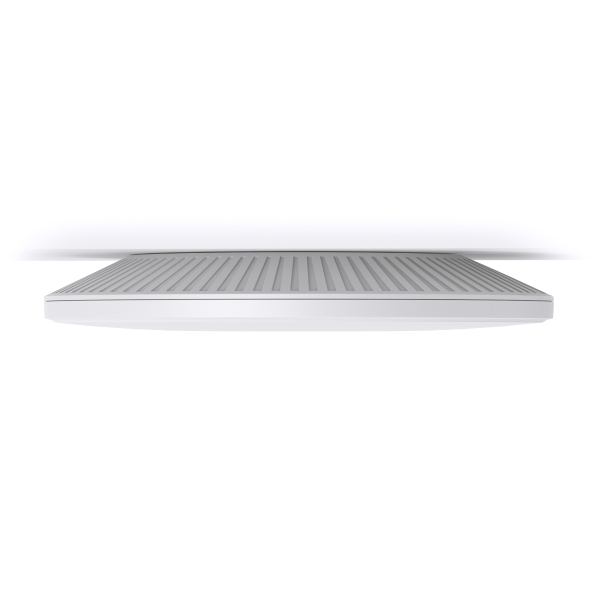

AX5400 Ceiling Mount WiFi 6 Access Point

  • Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).
  • Integrated into Omada SDN, supporting centralized cloud Management, ZTP*, and more.
  • 160 MHz Channel double the data at peak transmission times on a single stream.
  • Advanced features: Supports seamless roaming§,Omada Mesh§, and more.
  • Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.

Learn more about Omada Wi-Fi 6>​

Learn more about Omada Cloud SDN>​

High-End Business WiFi 6 to Power Up Your Business

AX5400 Ceiling Mount
Wi-Fi 6 Access Point

  •

    AX5400 WiFi 6 Speed

    4804 Mbps on 5 GHz +
    574 Mbps on 2.4 GHz

  •

    High-Efficiency WiFi 6

    More connected devices can enjoy faster speeds

  •

    Centralized Cloud Management

    Manage the whole network locally or from the cloud

  •

    2.5GE Wired Performance

    Boosts overall throughput with a 2.5 Gbps Ethernet port

  •

    160 MHz Channel

    Double the data at peak transmission times on a single stream with HE160

  •

    Auto Channel Selection and Power Adjustment*

    Optimize overall performance by reducing WiFi interference

  •

    Omada Mesh Technology

    More flexible and convenient wireless deployment§

  •

    Seamless Roaming

    Uninterrupted streaming when moving between APs§

  •

    PoE+ Powered

    Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations

Designed for Business Environments
Requiring High-Performance WiFi

  •

    Hospitality

    High-quality and full coverage Guest WiFi

  •

    Education

    High-security WiFi to connect more devices

  •

    Shopping Mall

    Seamless marketing WiFi coverage to boost business

  •

    Office

    Stable, seamless, and high-security WiFi coverage

  •

    Meeting Room

    Faster streaming, downloading, video conferencing, and more

High-End Business Wi-Fi 6 Bring Real Power to Your Business

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Learn more about Wi-Fi 6 >>



Superior WiFi 6 Speeds




Higher Efficiency for More Devices



Blazing-Fast AX5400 Wi-Fi 6 Speeds

High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.

  •

    1024 QAM

    25% more data encoded at one time

  •

    Long OFDM Symbol

    11% faster speed

  •

    HE160

    Double the data at peak transmission times on a single stream

5GHz

2.4GHz

4 Stream WiFi 5

Ordinary 4 Stream WiFi 6 with HE80

EAP673: 4 Stream WiFi 6 with HE160

2 Stream WiFi 5

EAP673:
2 Stream WiFi 6

1734 Mbps

2402 Mbps

4804 Mbps

300 Mbps

574 Mbps

177% Faster

90% Faster

Higher Efficiency for More Devices

Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag.  Enjoy faster speeds on more devices with less lag.



Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Learn more about Omada SDN >>

  •

    Hardware, Software, or Cloud-Based Controllers

  •

    Centralized Cloud Management

  •

    Intelligent Monitoring

  •

    Zero-Touch Provisioning (ZTP)*



Internet

Cloud Access

WiFi 6 Ceiling Mount AP EAP673

Wall Plate AP

Outdoor AP

Omada PoE Switches

Omada VPN Router

Web Browser

Omada App

Omada Hardware Controller

Or

Omada Software Controller

Easy Deployment & Higher Performance by Omada Mesh§

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

  • Traditional Wired Networking

  • Mesh Wireless Networking

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

  •





    Intelligent Self-Organization

  •







    Self-Healing

Always Stay Smooth with Fast Roaming§

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Boosted Network Security and Efficiency

Security

  •

    Secure Guest Network with Up to 16 SSIDs

    Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

  •

    Boost Business with SMS Login

    Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.§

  •

    WPA3 for Worry-Free Open Public Networks

    With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Efficiency

  •

    Band Steering

    Automatically moves dual band devices onto the wider 5GHz band for faster connections.

  •

    Load Balance

    Ensures large numbers of users have smooth network experiences in high-density business networks

  •

    Airtime Fairness

    Increases average network throughput in heavily congested environments

HARDWARE FEATURES
Interface 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12 V / 2 A DC (Power adapter not included)
Power Consumption • EU: 20.8 W
• US: 22.3 W
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi
Bluetooth Yes
Mounting Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 140㎡(1500 ft²)***
Concurrent Clients 250+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents • EAP673
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

§Omada Mesh, Seamless Roaming, and Captive Portal require the use of an Omada SDN controller. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
